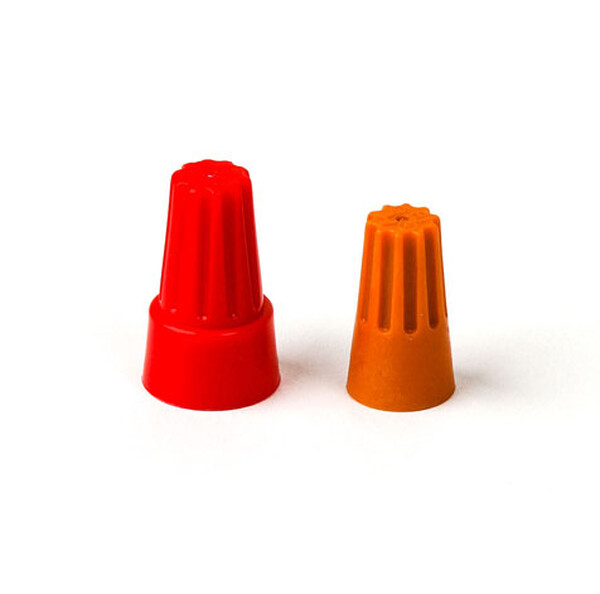

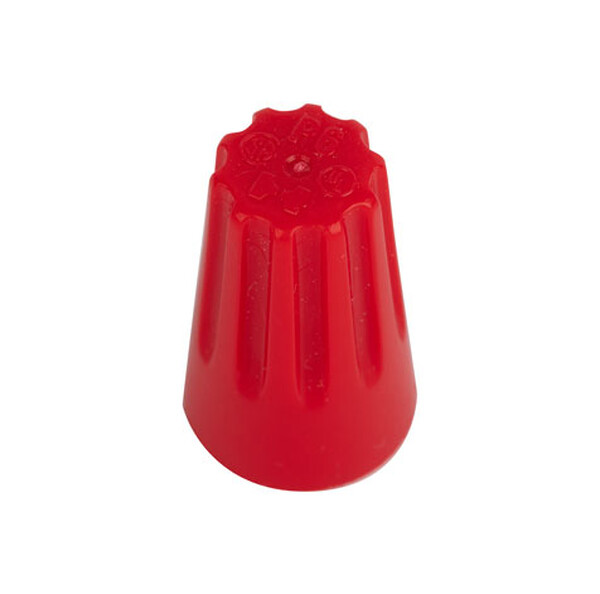

Material of a wire nut: PVC, threaded, heat-resistant, and insulated.
Rated voltage of cable nuts: 450V.
Rated current of insulated wire nuts: 24A.
Voltage resistance of electrical wire nut connectors: 4kV.
Ambient temperature of plastic wire nuts: -40℃~+105℃.
Use of wire cable nut: Put the joint of two-wire into the cap and screw until it is tight, wall to secure the cable.
Application of wire nut: Wire Joining.

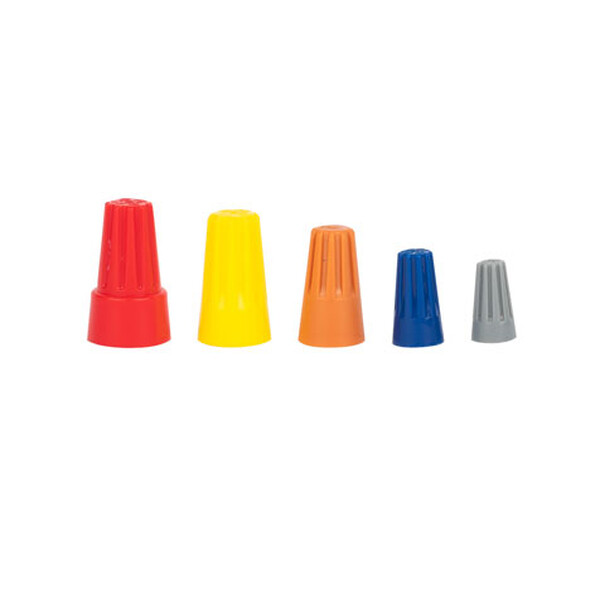

| ITEM NO. | H | B | C | APPROX WIRE SIZE | Wire diameter | STANDARD PACKING |
| MM | MM | MM | ||||
| P1 | 15.0 | 9.0 | 7.0 | 0.1-1.0MM²(AWG22-18) | 0.2-2.5MM² | 100PCS/500PCS/1000PCS |
| P2 | 18.0 | 10.0 | 8.0 | 1.0-1.5MM²(AWG18-16) | 0.5-2.5MM² | |
| P3 | 23.0 | 11.0 | 10.0 | 1.5-2.5MM²(AWG16-14) | 0.5-4MM² | |
| P4 | 24.0 | 14.0 | 11.0 | 2.5-4MM²(AWG14-12) | 0.5-6MM² | |
| P6 | 32.0 | 18.0 | 14.0 | 10-16MM²(AWG6) | 0.5-10MM² |
