Material:
PE, Working Temperature:- 40ºC to 65ºC, short time is 80ºC.
PP, Working Temperature:- 30ºC to 90ºC, short time is 110ºC.
PA, Working Temperature:- 35ºC to 120ºC, short time is 140ºC.
Brass, Iron screw.
Voltage: 250 - 450V.
Color: Natural, White, Black.
HS Code: 8536900000.
Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.

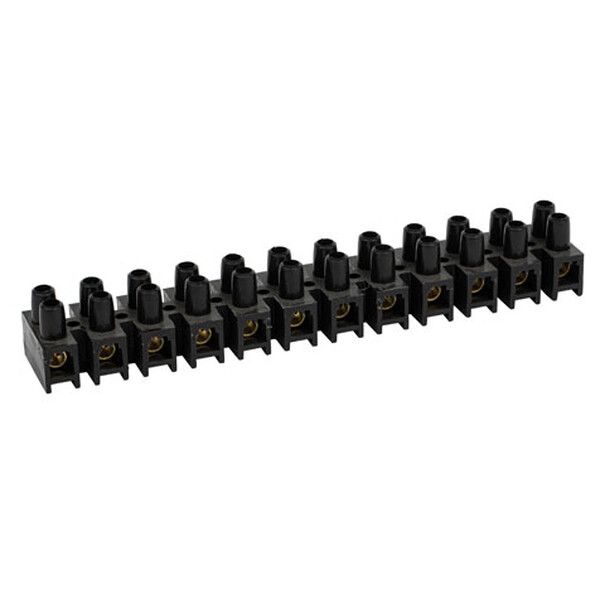

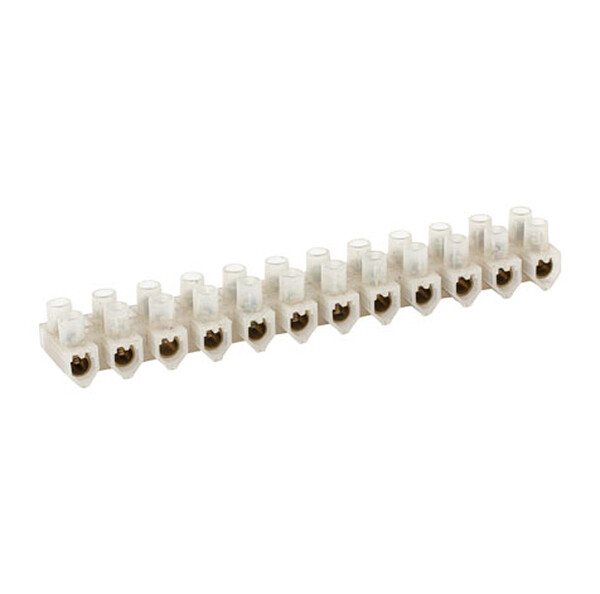

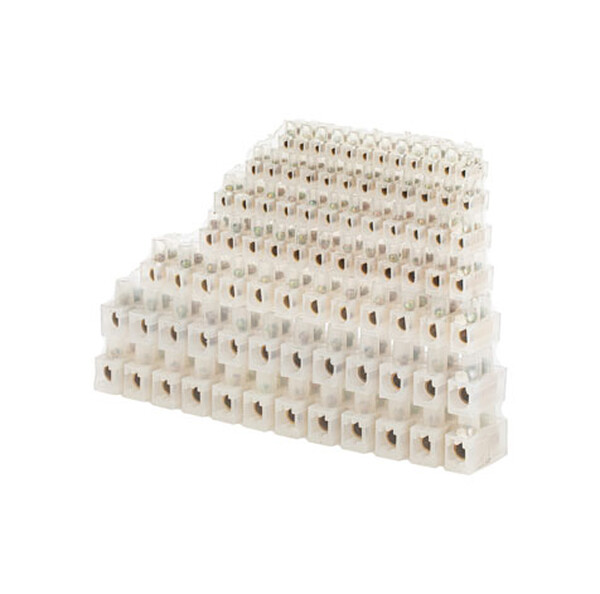

Feature: Nylon shell, long copper tube, easy to conduct electricity and hold wire tight.
To find the right specification user need, check this data sheet for need-rated current and section size.
| ITEM NO. | Rated current | Section size | Dimensions | |||||
| A | MM² | L(MM) | W(MM) | H(MM) | A(MM) | B(MM) | DIA(MM) | |
| V-3 | 3 | 2.5/4 | 91.25 | 15.7 | 13.5 | 5.7 | 8 | 3.2 |
| V-6 | 6 | 6 | 109.35 | 16.9 | 14.5 | 6.5 | 9.21 | 3.3 |
| V-10 | 10 | 10 | 126.2 | 20.25 | 15.8 | 8.25 | 10.6 | 3.85 |
| V-15 | 15 | 12 | 135 | 22.6 | 17.6 | 8.3 | 11.9 | 4.3 |
| V-30 | 30 | 16 | 156 | 25.65 | 20.5 | 9.1 | 13.1 | 5.5 |
| V-60 | 60 | 25 | 189 | 29.9 | 25.6 | 13 | 15.8 | 6.6 |
| V-80 | 80 | 30 | 205 | 36.1 | 29.9 | 14.2 | 17.2 | 7.3 |
