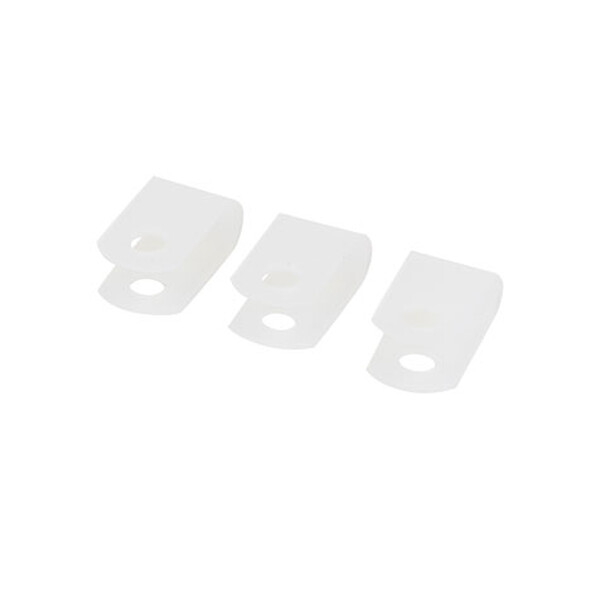

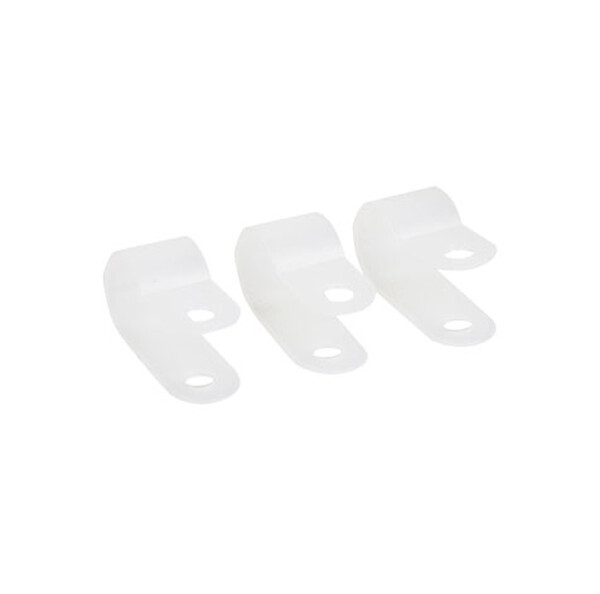

Material of r type cable clamps: Nylon 66 certificated by UL, 94V-2.
Temp Resistance of r type cable clamps: -30 centigrade to 80 centigrade; Short time 140 centigrade.
Color of r type cable clamps: Natural (or white, standard color), UV black, and other colors are available as requested.
Feature of r type cable clips: Heat-resisting, and erosion control, insulate well and not apt to age.
Package of r type cable clips: 100PCS, or as customer's requirement.
Usage of r type cable clips: Put the cable in fix by screw.
| ITEM NO. | A | B | Diameter | Length | |
| mm | mm | mm | inch | mm | |
| HT-1/8R | 9.5 | 9.6 | 3.2 | 1/8" | 19.8 |
| HT-3/16R | 9.6 | 9.6 | 4.8 | 3/16" | 19.8 |
| HT-1/4R | 12.0 | 10.0 | 6.35 | 1/4" | 22.0 |
| HT-5/16R | 12.0 | 10.0 | 7.9 | 5/16" | 22.0 |
| HT-3/8R | 12.5 | 12.0 | 9.5 | 3/8" | 24.0 |
| HT-1/2R | 15.2 | 12.0 | 12.7 | 1/2" | 31.0 |
| HT-5/8R | 18.2 | 12.0 | 15.8 | 5/8" | 34.3 |
| HT-3/4R | 18.2 | 12.0 | 19.4 | 3/4" | 35.0 |
| HT-1R | 22.0 | 12.0 | 25.4 | 1" | 43.0 |
| HT-17/16R | 24.0 | 12.0 | 27.5 | 17/16" | 50.0 |
| HT-5/4R | 26.2 | 12.0 | 31.8 | 5/4" | 46.2 |
| HT-3/2R | 30.0 | 12.0 | 36.7 | 3/2" | 50.0 |
