The optical isolation terminal has the advantages of low signal loss at the control end, high switching frequency, no mechanical contact jitter, no wear switching, high insulation voltage, no vibration, no positional influence, and long life. Therefore, male disconnect terminal is widely used in the field of automatic control.

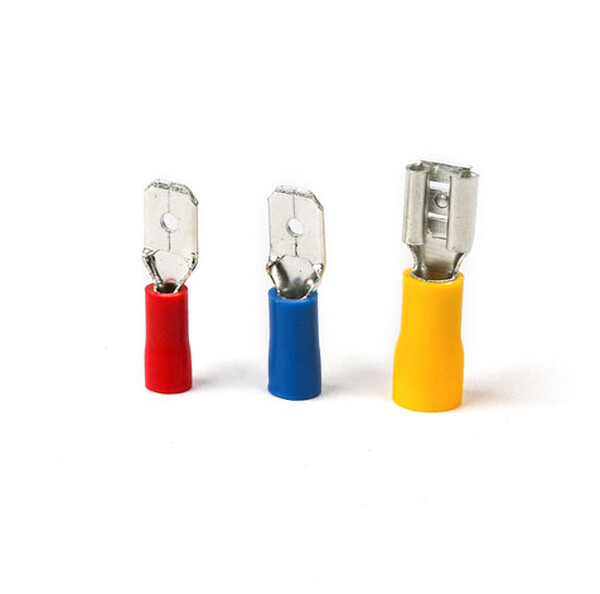

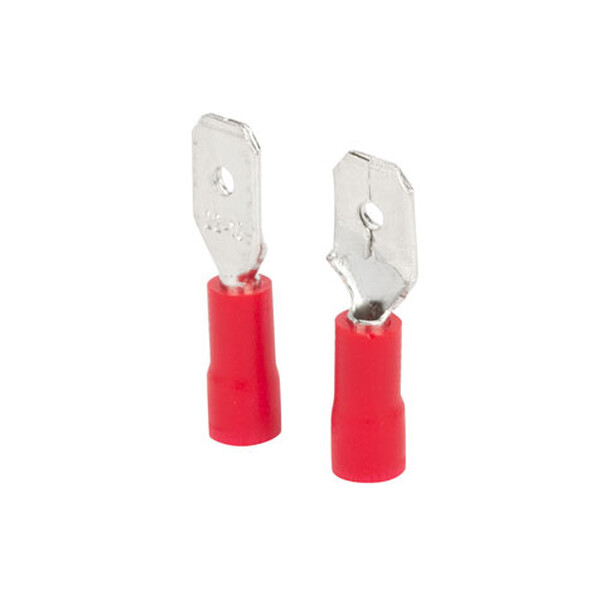

Male disconnects terminal is a kind of accessory product used to realize electrical connection, which is divided into connector category in industry. The male quick disconnect terminal is used to facilitate the connection of the wire. It is actually a piece of metal enclosed in insulating plastic, with holes at both ends for inserting wires, and screws for fastening or loosening. For example, two wires need to be connected sometimes, and sometimes they need to be disconnected. At this time, insulated male spade terminals of the insulated lugs electrical can be connected with terminals and disconnected at any time without welding or twisting them together, which is very convenient and quick.
Insulated Female Disconnects
Maxium electrical rating: 300volts
Maxium temperature: 75℃
Terminal Body: Brass
Plating: Tin
Insulation material of insulated male disconnect: vinyl
| Item NO. | Mema Tab | Thickness of material | Dimension | Section size（MM²） | ||||
| (mm) | (mm) | B(mm) | dφ(mm) | Dφ(mm) | L(mm) | H(mm) | ||
| Cable size0.5～1.5mm2（A.W.G. 22～16) Max current：Imax=10A | ||||||||
| MDD1.25-110(8) | 0.8×2.8 | 0.8 | 2.8 | 1.7 | 4.3 | 17.7 | 10 | 0.5~1.5mm² (22~16):Imax=10A |
| MDD1.25-187(5) | 0.5×4.75 | 0.5 | 4.75 | 1.7 | 4.3 | 20 | ||
| MDD1.25-187(8) | 0.8×4.75 | 0.8 | 4.75 | 1.7 | 4.3 | 18.5 | ||
| MDD1.25-250 | 0.8×6.35 | 0.4 | 6.35 | 1.7 | 4.3 | 21 | ||
| Cable size1.5～2.5mm2（A.W.G. 16～14) Max current：Imax=15A | ||||||||
| MDD2-187(5) | 0.5×4.75 | 0.5 | 4.75 | 2.3 | 4.3 | 20 | 10 | 1.5~2.5mm² (16~14):Imax=15A |
| MDD2-187(8) | 0.8×4.75 | 0.8 | 4.75 | 2.3 | 4.3 | 18.5 | ||
| MDD2-250 | 0.8×6.35 | 0.4 | 6.35 | 2.3 | 4.3 | 21 | ||
| Cable size4～6mm2（A.W.G. 12～10) Max current：Imax=24A | ||||||||
| MDD5.5-250 | 0.8×6.35 | 0.4 | 6.35 | 3.4 | 5.7 | 25 | 14 | 4~6mm² (12~10):Imax=24A |
